Ceiling Suspended DR System

Description

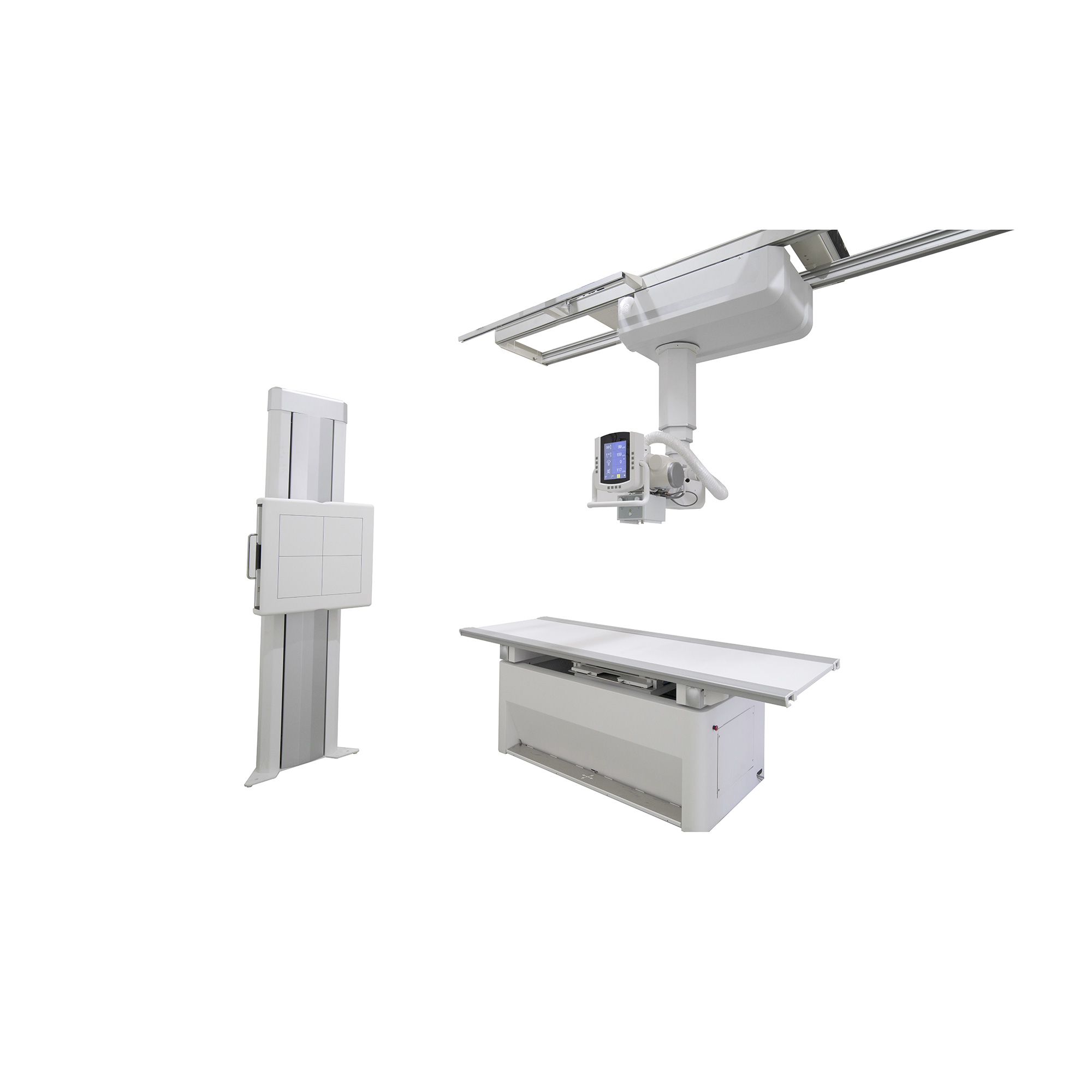

INS Series Ceiling-mounted Digital Radiography System

▪ Intelligent Algorithm for High-Resolution Image

▪ Image processing: Image enhancement, balance, noise reduction

▪ The image gray scale can be adjusted automatically or manually

▪ The specific screening program for pneumoconiosis

Special functions

1. Auto tracking – Press the up and down key of the tube or Bucky the other machine will automatically move when the tube and Bucky are upright. The error of the tube center to the Bucky center is ±2mm in an upright direction. The auto-tracking is also between the ceiling and the table. When the ceiling is up and down the tabletop also does this. When the Bucky under the table moves left and right the ceiling will also make it.

2. Resetting – You can preset three positions on the machine. Press the three resetting keys the system will move to the positions you preset. Usually, we set 1m position, 1.8m position, and under table position.

Technical Parameters

Model	INS-32KW	INS-50KW	INS-65KW	INS-80KW
Power Output	32kW	50kW	65kW	80kW
Current	10-400mA	10-630mA	10-800mA	10-1000mA
Voltage	40kV-150kV	40kV-150kV	40kV-150kV	40kV-150kV
mAs	0.1-400mAs	0.1-630mAs	0.1-800mAs	0.1-1000mAs
Exposure time	1-6300ms	1-6300ms	1-6300ms	1-6300ms
Focus Size	1.0/2.0	0.6/1.2	0.6/1.2	0.6/1.2
Detector Type	Flat Panel Detector
Vision Size	17×17"
A/D Conversion	16 bits
Spatial Resolution	3.6 lp/mm
Pixel Size	3072X3072
Up and down stroke	1450mm±20mm(Motorise)
Transversal stroke	>1800mm(Motorise)
Lengthways stroke	>1800mm(Motorise)
Rotation about vertical axis Tube Rotation	360°(Manual)
Rotation about horizontal axis Tube Rotation	±90° (Motorise)
