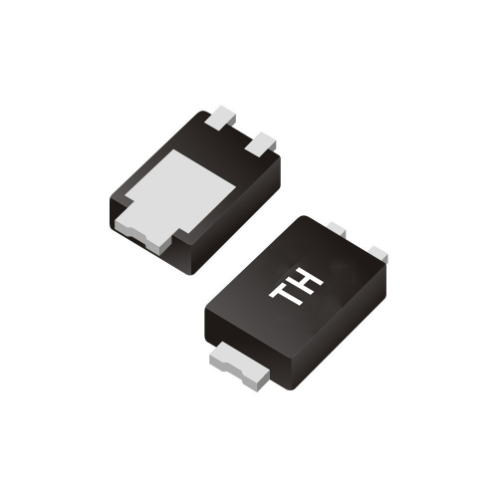

Schottky Diode

A diode formed by a metal-semiconductor junction (no PN junction), relying on the Schottky barrier.

Category:

Description

Part Number Package DC Reverse Voltage Forward Current Non-Repetitive Peak
Forward Surge Current 		Reverse Current Forward Voltage Power Dissipation Marking
VR(V) IF(A) IFSM(A) IR(µA) VF(V) PD(mW)
10BQ015 SMB/DO-214AA 15 1 140 500 0.34 –
10BQ040 SMB/DO-214AA 40 1 430 100 0.49 –
10MQ060 SMA/DO-214AC 60 1 40 500 0.63 –
10MQ100 SMA/DO-214AC 100 1 120 100 0.68 –
15MQ040 SMA/DO-214AC 40 1.5 330 500 0.43 –
30BQ040 SMC 40 3 2000 500 0.43 –
30BQ060 SMC 60 3 1200 500 0.52 –
30BQ100 SMC 100 3 800 500 0.62 –
1N5817W SOD-123 20 1 25 1000 0.45 500
B5817WS SOD-323 20 1 9 1000 0.45 –
1N5819W SOD-123 40 1 25 1000 0.6 500
B5819WS SOD-323 40 1 9 1000 0.6 – SL
B0520WS SOD-323 20 0.5 5.5 250 0.39 200 SD
B0540WS SOD-323 40 0.5 5.5 20 0.62 200 SF
BAS20H SOD-323 200 0.2 0.625 0.1 1 200
B340A SMA/DO-214AC 40 3 100 0.5 0.5 – B340A
B340B SMB/DO-214AA 40 3 100 0.5 0.5 – 340B
B360A SMA/DO-214AC 60 3 100 0.5 0.7 – B360A
B5817W SOD-123 20 1 9 1000 0.75 500 SJ
BAS85 LL-34 30 0.2 4 2 0.2 200
BAS86 LL-34 50 0.2 5 5 0.3 200
BAT42W SOD-123 30 0.2 4 0.5 1 200
BAS40 SOT-23 40 0.2 0.6 0.2 1 200 B1/43
BAS40-04 SOT-23 40 0.2 0.6 0.2 1 200 CB/44
BAS40-05 SOT-23 40 0.2 0.6 0.2 1 200 45
BAS40-06 SOT-23 40 0.2 0.6 0.2 1 200 L2/46
BAS70 SOT-23 70 0.07 0.1 0.1 1 200 BE/73
BAS70-04 SOT-23 70 0.07 0.1 0.1 1 200 CG/74
BAS70-05 SOT-23 70 0.07 0.1 0.1 1 200 EH/75
BAS70-06 SOT-23 70 0.07 0.1 0.1 1 200 GK/76
BAS70J SOD-323 70 0.07 0.1 0.1 1 200
BAS70WS SOD-323 70 0.07 0.1 0.1 1 200 K73
BAT20J SOD-323 20 1 5 0.88 0.35 200 20
BAT46W SOD-123 100 0.15 0.75 2 0.45 200
BAT46WS SOD-323 100 0.15 0.75 2 0.45 200 S9
BAT54 SOT-23 30 0.2 0.6 2 1 200 KL1
BAT54A SOT-23 30 0.2 0.6 2 1 200 KL2
BAT54C SOT-23 30 0.2 0.6 2 1 200 KL3
BAT54H SOD-323 30 0.2 0.6 2 1 200
BAT54S SOT-23 30 0.2 0.6 2 1 200 KL4
BAT54TW SOT-363 30 0.2 0.6 2 0.5 200
BAT54W SOD-123 30 0.2 0.6 2 1 500 L9
BAT54CW SOD-323 30 0.2 0.6 2 1 200 L9
BAT54SW SOD-323 30 0.2 0.6 2 1 200 L9
BAT54WS SOD-323 30 0.2 0.6 2 1 200 L9
BAV103 LL-34 200 0.25 1 0.1 0.25 500
BAV170 SOT-23 75 0.2 4 0.005 0.9 250
BAV199 SOT-23 75 0.2 4 0.005 0.9 250
BAV19W SOD-123 100 0.2 2 0.1 1 500
BAV20W SOD-123 150 0.2 2 0.1 1 500
BAV21W SOD-123 200 0.2 2 0.1 1 500 T3
BAV21WS SOD-323 200 0.2 2 0.1 1 250
MBR0520L SOD-123 20 0.5 5.5 80 0.45 500 SD
MBR0520LS SOD-323 20 0.5 2 80 0.45 200
MBR0530 SOD-123 30 0.5 5.5 80 0.55 500 SE
MBR0540L SOD-123 40 0.5 5.5 80 0.55 500 SF
MBR130 SOD-123 30 1 5.5 80 0.35 500 B3M
MBR230L SOD-123FL 30 2 50 0.5 0.5 – 23
MBRD20100CT TO-252 100 20 300 20 0.85 1250
MURS120 SMB 200 1 40 2 0.875 –
MURS160 SMB 600 1 35 5 1.25 –
MURS320 SMC 200 3 100 5 0.95 –
MURS360 SMC 600 3 100 5 0.95 –
