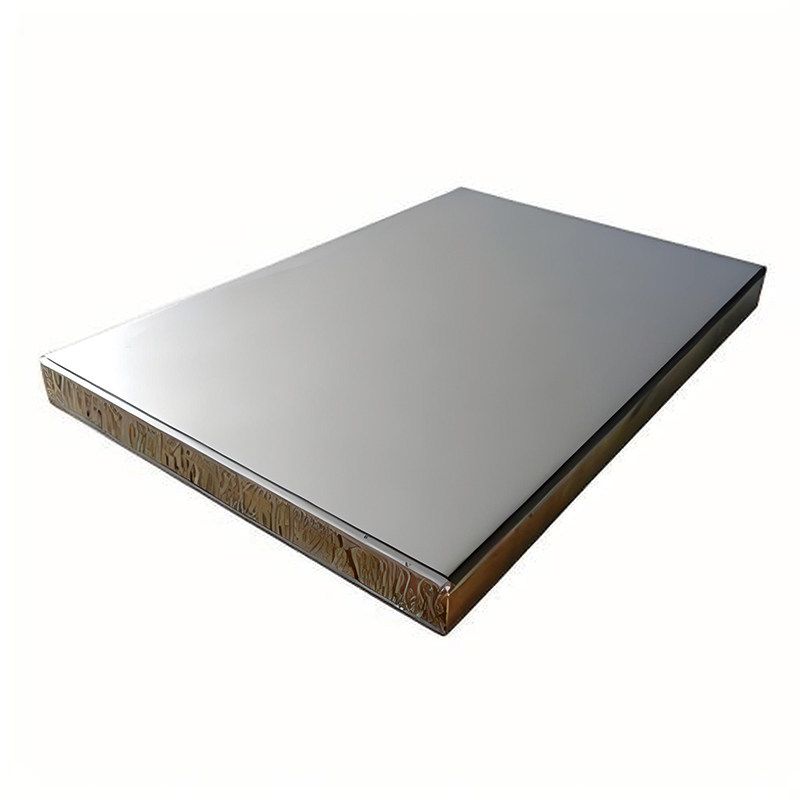

317L stainless steel plate-higher molybdenum content

● Delivery: within 10-15 days or considering the quantity● Transport: By bulk or Containers;● Supply ability: 3000 metric tons/ month;● Payment terms L/C, T/T;

Category:

Description

Profile

The composition of 317L stainless steel gives it its unique properties and characteristics.  This type of stainless steel is composed of a combination of elements such as chromium, nickel, molybdenum, and carbon.  Chromium is the main component of 317L stainless steel and has good corrosion resistance.  It forms a protective layer on the metal surface, preventing rust and staining.

Chromium also plays an important role in providing corrosion resistance and increasing high-temperature strength.  Molybdenum improves resistance to pitting corrosion from chloride solutions commonly found in harsh environments such as seawater or chemical processing plants.  Carbon content helps increase hardness but can reduce weldability if not controlled properly.  The precise balance between these elements ensures that 317L stainless steel performs better than traditional austenitic grades when used in high-temperature, corrosive environments.

Product Description

Product

317L Stainless Steel Sheet

Surface Finish

BA, 2B, 4K, 6K, 8K, NO.4, HL, Embossed, Perforated, Pickling white, Polished outside, Polished inside and outside

Technique

Hot Rolled / Cold Rolled

Standard

AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc

Width

500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required

Length

500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required

Thickness

0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required

Material

201, 202
304,304L,321,316L,316Ti,317L,309S,310S
904L
410,420,430,436L,409L,441,443,444
17-4PH,XM-19
2205, 2750

Color

Standard RAL color: Red, Blue, White, Grey, Brick, etc.

Stock Dimension

Cold Rolled: 0.4-6.0mm*1000*2000mm/ 1220*2440mm/ 1250*2500mm/ 1500*3000mm, or as your request
Hot Rolled: 3.0-16.0mm*1250*2500mm/ 1500*3000mm/ 1500*6000mm/ 1800*6000mm/ 2000*6000mm, or as your request
Thick Sheet: 6.0mm-80mm*width*length,  as your request
Mirror: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable
Hairline: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable
Color Coating: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable
Sandblasting: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable

Service

OEM, Customized processing service, Customized fabrication by drawings

Processing Type

Cutting, Bending, Stamping, Welding, CNC machining

Cutting Type

Laser cutting; Water-jet cutting; Flame cutting

Protection

1. Inter paper available
2. PVC protecting film available

Application

Costruction Industry/ Kichten Products/ Fabrication Industry/ Home Decoration

Chemical Composition

C

Si

Mn

Cr

Ni

S

P

Mo

 Ti

≤ 0.08

≤1.0

≤ 2.0

16.0～18.0

10.0～14.0

≤ 0.03

≤ 0.045

2.0～3.0

 0.5～0.7



Mechanical Properties

Tensile Strength Kb (MPa)

Yield Strength σ0.2 (MPa)

Elongation D5 (%)

Hardness

≥515

≥205

≥ 40

≤ 187HB;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)

Modulus of Elasticity(Gpa)

Coefficient of Thermal Expansion(10-6/°C)

Coefficient of Thermal Conductivity(W/m*K)

Resistivity(ΜΩ. cm)

7.99

193

16.0

16.2

74

Surface Selection
