Product Introduction

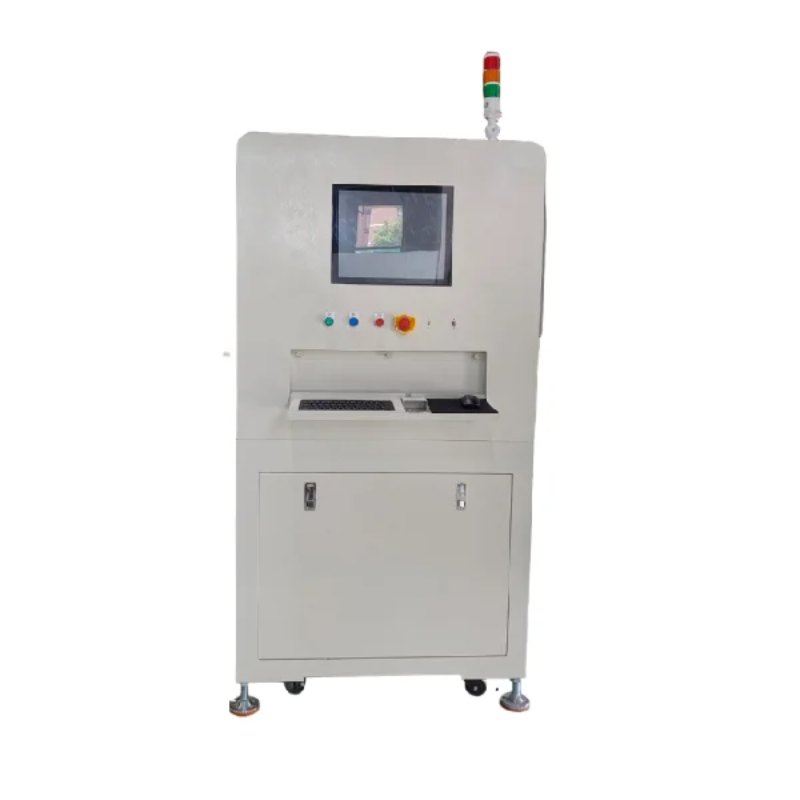

The Automatic Teeth Model Loading Machine HBL-SLJ-01 is an automated equipment solution for gripping and feeding teeth models in production lines. With a flexible and compact design, the machine uses a 4-axis robot and visual recognition system to identify and precisely grip teeth models before feeding them to the designated process.
By automating the gripping and feeding operation, the equipment reduces the need for manual intervention during model handling. This helps reduce labor requirements while minimizing the potential for model damage and operational risks associated with manual gripping and feeding.
The machine is designed for continuous operation and can work for one hour with a single load, making it suitable for automated production environments where stable teeth model supply is required.
Key Product Features
Automated Teeth Model Gripping and Feeding
The equipment automatically grips and feeds teeth models, reducing manual intervention in the model loading process. Automated handling helps maintain a consistent feeding process for production lines.
Precise Visual Recognition
A visual recognition system is integrated into the equipment to support teeth model identification and positioning. The camera system uses a 1920 × 1080 resolution and a 12 mm focus specification, with a working distance of 100–1000 mm.
4-Axis Robotic Handling
The machine uses a 4-axis robot for model gripping and movement. The robot has a rated load of 2 kg, an arm span of 703 mm, and a reposition accuracy of 0.02 mm.
Fast Loading Cycle
The loading cycle is ≤8 seconds, supporting efficient teeth model handling and automated production processes.
Low Feeding Fault Rate
The teeth model feeding fault rate is less than 1%, helping support stable model supply during automated operation.
Continuous Operation
The equipment can work continuously for one hour with one load, reducing the frequency of manual replenishment during operation.
Compact Equipment Design
With an overall dimension of 960 × 1100 × 1900 mm, the equipment is designed as a flexible and compact loading solution for automated production lines.
Main Specifications
| Item | Specification |
|---|---|
| Equipment Model | HBL-SLJ-01 |
| Equipment Dimension | 960 × 1100 × 1900 mm |
| Loading Cycle | ≤8 s |
| Teeth Model Feeding Fault | <1% |
| Continuous Working Time | 1 hour with one load |
| Robot Type | 4-axis robot |
| Robot Model | ProEasy P6-602S |
| Robot Rated Load | 2 kg |
| Robot Weight | 20 kg |
| Robot Arm Span | 703 mm |
| Robot Reposition Accuracy | 0.02 mm |
| Robot Power | 0.4 kW |
| Camera Pixel Size | 3 μm × 3 μm |
Visual Recognition System
The machine integrates a visual recognizer to support automated mold identification and handling.
| Item | Specification |
|---|---|
| Brand | SmartMore |
| Camera Model | VN4000 |
| Resolution | 1920 × 1080 |
| Focus | 12 mm |
| Working Distance | 100–1000 mm |
The visual recognition system works together with the robotic handling system to support the identification and positioning required during teeth model gripping and feeding.
Stepper Motor Specifications
A Leadshine stepper motor is used as part of the equipment system.
| Item | Specification |
|---|---|
| Model | Leadshine 57CM23 |
| Holding Torque | 2.3 N·m |
| Step Angle | 1.8° |
| Positional Accuracy | 1.8 ± 0.9° |
| Dielectric Strength | 500 VAC, 1 min |
Equipment Communication
The HBL-SLJ-01 supports communication with automated production lines through multiple communication methods.
-
Mold identification system provided for integration with the automated line
-
TCP/IP communication supported
-
RS232 communication supported
-
RS485 communication supported
These communication options allow the equipment to be incorporated into an automated line according to the communication requirements of the production system.
Automation Advantages
Reduced Manual Handling
Automated gripping and feeding reduce the need for operators to manually handle teeth models during the loading process.
Consistent Model Supply
The automated loading process supports continuous teeth model feeding and helps maintain stable model supply for downstream production operations.
Reduced Labor Requirements
By replacing manual gripping and feeding operations with automated handling, the machine can reduce the labor required for this stage of production.
Reduced Risk of Manual Damage
Automated gripping and feeding can help avoid potential damage associated with manual handling of teeth models and reduce operational risks during repetitive loading tasks.
Efficient Production Integration
The combination of visual recognition, 4-axis robotic movement and TCP/IP, RS232 and RS485 communication allows the equipment to work with an automated production line.
Application
The Automatic Teeth Model Loading Machine HBL-SLJ-01 is designed for automated teeth model gripping and feeding applications. It can be considered for production environments where teeth models need to be automatically identified, picked and supplied to an automated line.
The equipment is particularly suitable for production processes requiring:
-
Automated teeth model loading
-
Teeth model gripping and feeding
-
Visual model identification
-
Continuous model supply
-
Robotic handling
-
Integration with automated production lines
Equipment Configuration
The equipment combines several key systems to complete the automated loading process:
-
4-Axis Robot
Provides automated gripping and movement of teeth models. -
Visual Recognition System
Supports mold identification and positioning using the SmartMore VN4000 camera system. -
Stepper Motor System
Uses the Leadshine 57CM23 stepper motor for equipment movement. -
Mold Identification System
Supports operation together with an automated production line. -
Communication Interface
Supports TCP/IP, RS232 and RS485 communication for line integration.
