The YL-ZPC1213 is a premium heavy-duty wire mesh container engineered for efficient warehouse management. Its unique tapered design with interlocking stacking feet ensures absolute stability when stacking up to 4 units high. The foldable structure saves up to 56% of space during return logistics or idle storage, making it a cost-effective solution for global supply chains.

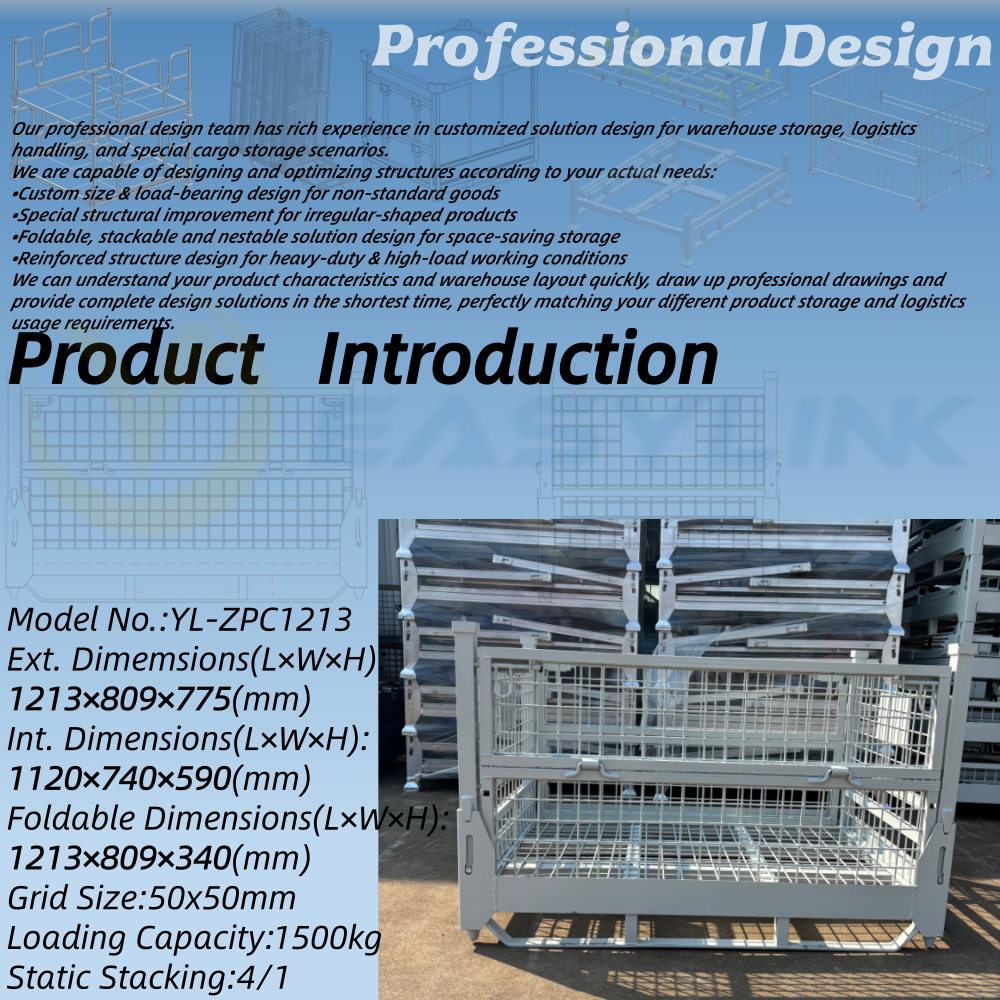

Technical Specifications:

Parameter	Specification
Model No.	YL-ZPC1213
Ext. Dimensions (L×W×H)	1213 × 809 × 775 mm
Int. Dimensions (L×W×H)	1120 × 740 × 590 mm
Folded Height	340mm
Grid Size	50× 50mm
Loading Capacity	1500kg
Static Stacking	4/1

Key Features & Benefits:

Space-Saving Foldability: Collapses to a compact height of only 340mm (56% space saving). Easy to assemble/disassemble with simple latch mechanisms.

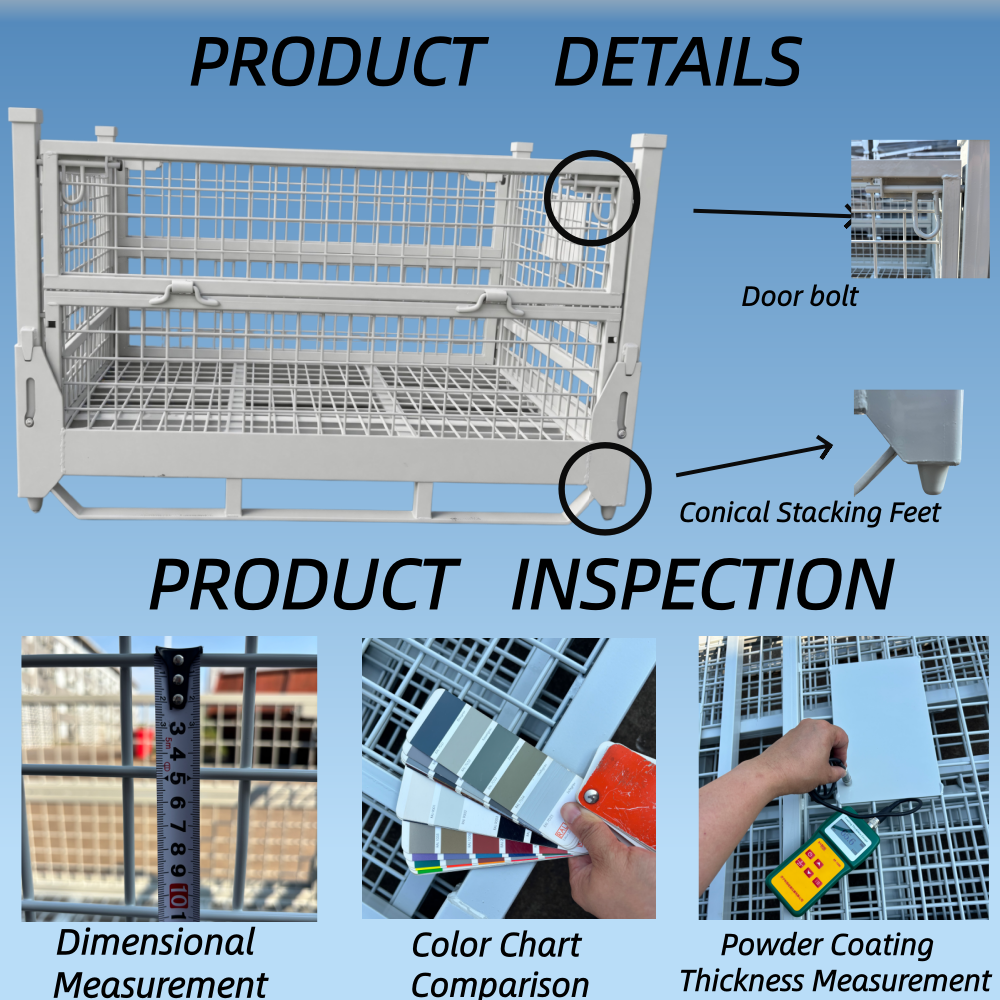

Superior Stacking Stability: The cone-shaped (tapered) design and robust corner feet allow for stable stacking of up to 4 layers under static load, ensuring safety in high-rack warehouses.

High Load Capacity: Rated for 1500kg (3300 lbs) static loading. The 50x50mm heavy-gauge wire mesh grid provides structural strength and excellent air ventilation.

Efficient Material Handling: Features a half-drop gate (front opening) for easy retrieval of contents without unstacking, and standard 4-way fork entry at the base for quick forklift or pallet jack operations.

Versatile Customization: Accepts OEM services including color coating (Powder coating/Galvanized), casters, and blank panels (as seen in the picture) for branding or RFID tags.
