Why Modular Design Matters for C&I Energy Storage EPC Projects
Commercial and industrial energy users looking to deploy battery energy storage often face a familiar set of obstacles: customized EPC project delivery is difficult to execute smoothly, installation cycles stretch longer than planned, and components sourced from different suppliers create confusion when something goes wrong after commissioning. When multiple vendors are involved in a single project, after-sales responsibility tends to shift between parties, leaving the end user without a clear point of accountability. Add to this the performance demands of off-grid paralleling, off-grid load operation, and PV-energy storage-diesel generator synergy, along with ongoing concerns about battery energy storage system safety, and it becomes clear why buyers are searching for a manufacturer that can consolidate these moving parts into a single, dependable package.
Renac Power Technology Co., Ltd, operating under the brand name RENAC, positions itself as a provider of turnkey C&I battery energy storage solutions built around self-developed 5S components and one-stop service. This approach is designed to respond directly to the pain points described above, rather than treating them as separate problems to be solved by separate suppliers.
The 5S Component Strategy Behind RENAC’s Turnkey Approach

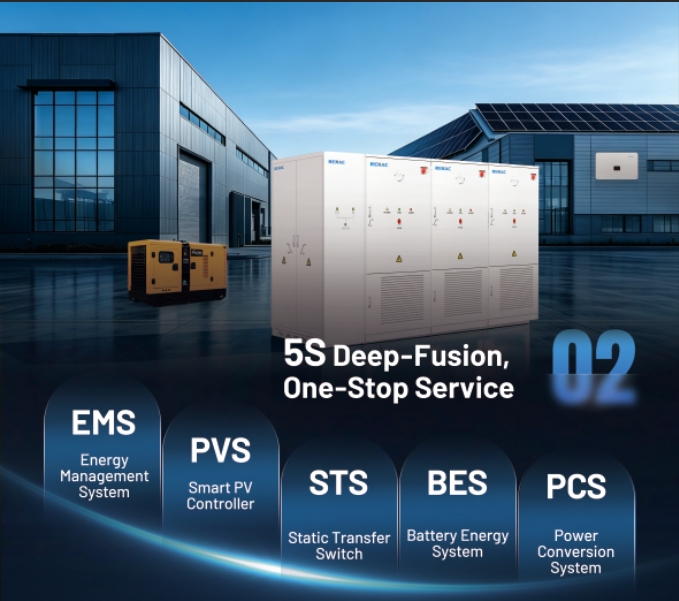

At the core of RENAC’s offering is a set of five self-developed components referred to as 5S: PCS, BES, PVS, STS, and EMS. Because these components are engineered by the same company rather than assembled from multiple third-party sources, they can be coordinated at the system level. This "5S deep fusion" allows the PCS to handle parallel module auto recognition and efficient energy conversion, the BES to manage multiple-level protection and battery lifecycle oversight, the EMS to adapt to PV-energy storage and generator scenarios, the PVS to combine 10 MPPTs with PV-energy storage fusion, and the STS to manage PV-energy storage and generator microgrid operation with grid forming and grid following control.
This coordinated design is the mechanism behind RENAC’s claim of one-provider accountability: because a single company designs, manufactures, and supports all five core components, customers are not left navigating disputes between separate vendors when an issue arises after installation.
Modular, All-in-One Design That Shortens Installation Cycles
The flagship RENA5000 C&I BESS Solution is built as an all-in-one, modular system intended for on-grid, off-grid, and on/off-grid applications. Standardized and modular configuration reduces on-site installation and commissioning complexity and shortens project delivery timelines, directly addressing the long installation cycles that complicate customized EPC delivery. The platform also includes an external STS design, which supports on-grid and off-grid parallel operation without requiring additional grid and load distribution boxes, lowering system cost and simplifying the installation process further.
For projects that specifically need to eliminate an extra distribution cabinet, RENAC offers the ESS-261-S, a C&I battery energy storage system rated at 125 kW and 261 kWh with an integrated 175 kW STS module. This integration supports seamless on-grid to off-grid transfer in under 20 milliseconds and long-term overload capability of 110%, which is relevant for critical loads that cannot tolerate interruption. The standard ESS-261 unit, also rated at 125 kW and 261 kWh, offers the same all-in-one modular design with flexible capacity expansion and support for on-grid and off-grid parallel operation, along with 100% unbalanced load support through its transformerless 3L/N/PE output.
Performance Built for Demanding Off-Grid and Hybrid Scenarios
Off-grid paralleling, off-grid load operation, and PV-energy storage-diesel generator synergy require systems that can respond quickly and handle irregular loads. RENAC’s active STS switching operates in under 20 milliseconds, supporting reliable off-grid backup performance. The transformerless three-phase four-wire architecture across the platform supports off-grid operation with complex loads, including inductive and half-wave types, while the system as a whole supports multiple operating modes and both AC and DC PV coupling to accommodate varied energy scenarios such as PV plant retrofit, ancillary service, capacity expansion, off-grid power supply, maximum self-consumption, time-of-use management, and demand management.
The PVS-125K PV controller complements this hybrid capability with 10 MPP trackers and 20 input strings, 150% PV input oversizing, and compatibility with 700 W-plus high-power PV modules, all housed in an IP65-rated outdoor enclosure. For microgrid coordination involving diesel generators, the STS-400 micro-grid control system manages smooth switching among on-grid, off-grid, and diesel generator modes, again with switch times under 20 milliseconds.
Addressing Battery Safety Concerns
Battery energy storage system safety is a recurring concern for C&I buyers, and RENAC addresses this through both design and sourcing. LFP cells, BMS, and packs used in RENAC solutions are manufactured by REPT, which provides quality assurance and after-sales support for these components. The aluminum alloy pack material used in the system is rated IP67 and includes thermal propagation suppression, while PPE/PRO plastic packs carry an IP66 rating and mechanical strength against drops, impacts, and crushing. These measures are paired with a 5-year product warranty and a 10-year battery performance warranty, giving buyers a documented basis for evaluating long-term reliability.
Demonstrated Project Experience
RENAC’s approach has been applied across a small but varied set of documented projects. In Moldova, a PV plant added energy storage to an existing 600 kW PV installation using 12 R3-50K on-grid inverters, deploying five ESS-261 units to provide 1.3 MWh of storage capacity for additional revenue generation. In the Philippines, a biodiesel refinery on Mindanao Island used a 125 kW PV array coupled through the PVS controller with a single ESS-261 unit delivering 261 kWh of storage to power an on/off-grid island microgrid. In Romania, a farm implemented the same 125 kW PV and 261 kWh storage configuration to achieve fully off-grid operation.
A Consolidated Path Through Complex EPC Delivery
For commercial and industrial buyers evaluating a manufacturer capable of simplifying complex EPC project delivery, the combination of self-developed 5S components, modular all-in-one design, external STS integration, and REPT-backed battery safety assurances gives Renac Power Technology Co., Ltd a coherent value proposition: faster project delivery, simplified after-sales through a single point of contact, improved safety, and full-lifecycle energy value for C&I users navigating on-grid, off-grid, and hybrid diesel-integrated scenarios.
