QC11K-16X3200 CNC Hydraulic Guillotine Shear

Description

https://www.zdmt-machine.com/qc11k-16×3200-cnc-hydraulic-guillotine-shear.html

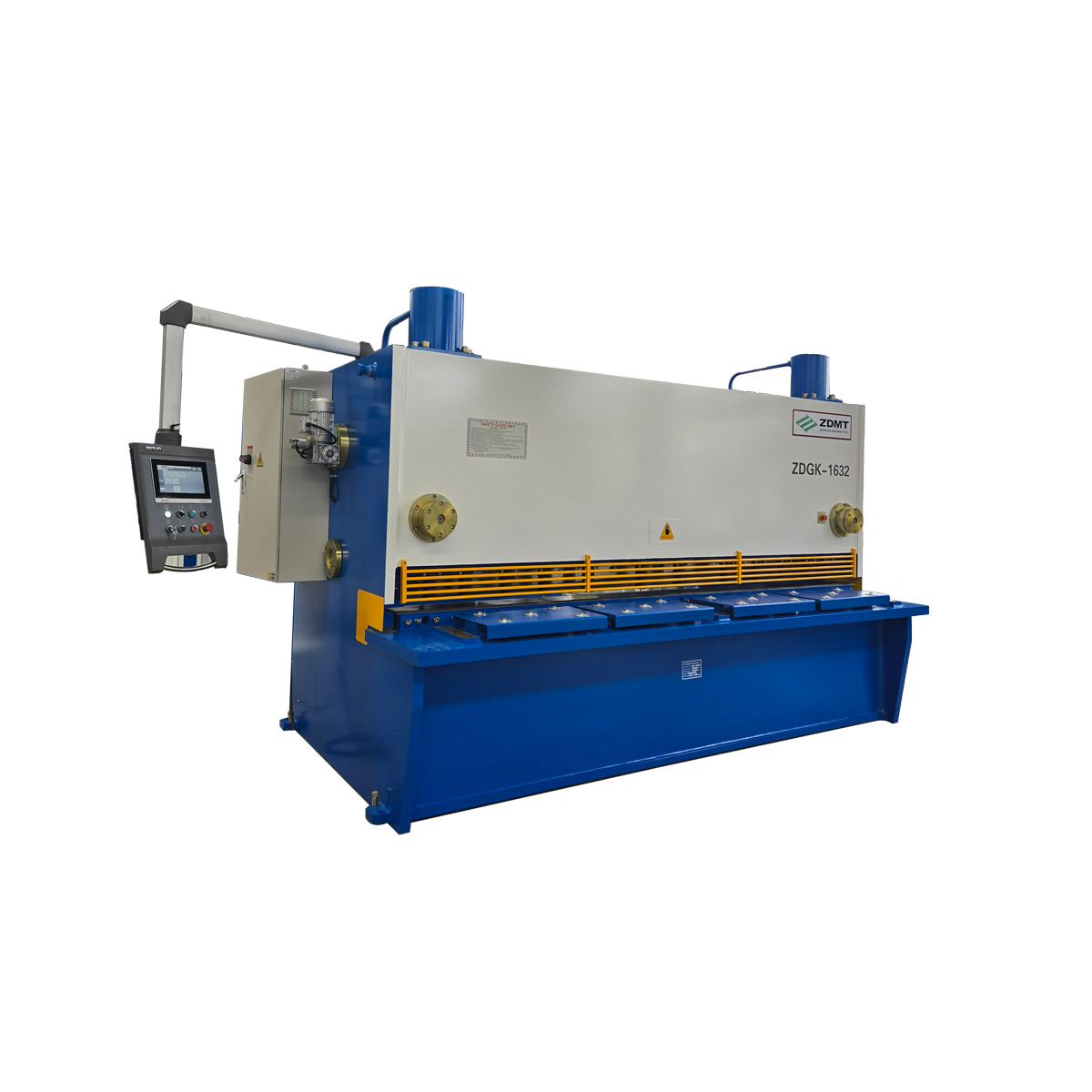

The QC11K-16X3200 CNC Hydraulic Guillotine Shear, also identified as ZDGK-1632, is a heavy-duty hydraulic shearing machine developed for precision cutting of sheet metal. With a maximum cutting capacity of 16 mm in thickness and a maximum cutting length of 3200 mm, it is designed to handle demanding metal fabrication operations across a wide range of industrial applications.

The machine is equipped with a Delem DAC360T CNC controller from the Netherlands, which provides centralized control of key shearing parameters, including backgauge positioning, cutting stroke, rake angle, blade clearance, and step repetition. This CNC configuration helps operators set and manage cutting operations efficiently while maintaining consistent processing performance.

Key Advantages

Rigid Welded Machine Structure

The main frame is manufactured using a fully welded steel construction. After welding, stress-relieving treatment is applied to help minimize structural deformation and maintain the rigidity required for heavy-duty sheet metal shearing.

The robust frame provides a stable foundation for the hydraulic cutting system and contributes to consistent cutting performance during repeated production operations.

Three-Pair Guide System

The machine incorporates a three-pair rail and trolley guiding arrangement. This design helps minimize bearing clearance within the moving system, supporting smoother blade movement and improving the stability of the shearing process.

By maintaining controlled movement of the cutting assembly, the guide structure is designed to contribute to more consistent cutting results.

Operator Safety Guard

A protective guard fence is installed around the shearing area. It helps create a safer operating zone while still allowing the operator to monitor the sheet positioning and cutting area.

The guard design provides a practical balance between operational visibility and protection during machine operation.

Ball-Type Worktable

The worktable is fitted with ball transfer elements to reduce friction between the sheet material and the table surface. This allows metal sheets to be repositioned more easily and can reduce the physical effort required during material handling.

The machine also incorporates high-quality hold-down clamps to secure the workpiece during the cutting process and support stable sheet positioning.

Delem DAC360T CNC Control

The Delem DAC360T CNC controller serves as the central control system for the machine. It is specifically suited to guillotine shearing applications and allows important cutting parameters to be managed through the CNC interface.

Depending on the configured machine functions, the controller manages parameters such as:

• Backgauge position

• Cutting stroke

• Rake angle

• Blade clearance

• Repeated cutting steps

• Step sequence control

This configuration allows operators to establish cutting parameters more efficiently and supports repeatable production workflows.

Processing Capability

The QC11K-16X3200 is designed for processing metal sheets with a maximum thickness of 16 mm and a maximum cutting width of 3200 mm.

The hydraulic shearing configuration makes the machine suitable for production environments where large metal plates need to be cut into predetermined dimensions before subsequent forming, welding, machining, or assembly processes.

Its combination of a rigid welded frame, hydraulic shearing mechanism, adjustable cutting parameters, CNC backgauge control, and sheet-support features makes it suitable for both general fabrication and demanding industrial metalworking applications.

Typical Applications

Hydraulic guillotine shears are widely used as a primary or preparatory cutting machine in sheet metal fabrication. The QC11K series can be applied across several industrial sectors.

Machinery and Automotive Manufacturing

The machine can be used for preparing steel plates and other sheet materials for mechanical components, fabricated parts, automotive sheet metal components, and equipment structures.

Shipbuilding and Aerospace

Large-format metal sheets used in shipbuilding and aerospace-related fabrication can require accurate preliminary cutting before forming and assembly. The machine can be used for structural sheet processing as well as components such as equipment panels and enclosures.

Metallurgy and Metal Fabrication

The hydraulic shear can be incorporated into metal-processing operations for cutting steel plates and preparing material for subsequent fabrication processes.

Architectural and Decorative Metalwork

The machine is also suitable for cutting stainless steel and other sheet materials used in architectural structures, metal products, decorative components, and fabricated steelwork.

Main Specifications

Model	6X2500	6X3200	6X4000	8X2500	8X3200	12X3200	16X3200
Cutting thickness (mm)	6	6	6	8	8	12	16
Cutting length (mm)	2500	3200	4000	2500	3200	3200	3200
Shear angle (°)	0.5-2	0.5-2	0.5-2	0.5-2	0.5-2	0.5-2.5	0.5-2
Strokes (mim-1)	10-25	10-25	10-25	10-25	10-25	6-20	5-15
Columns distance (mm)	2780	3480	4280	2780	3480	3545	3560
Blades length (mm)	2600	3300	4100	2600	3300	3300	3300
Backgauge                stroke (mm)	20-600	20-600	20-600	20-600	20-600	20-800	20-800
Main motor (kw)	7.5	7.5	7.5	11	11	18.5	18.5
Dimensions (mm)	3270x1860x2050	3820x1880x2100	3620×1900                X2200	3270x1850x2100	3820x1900x2200	3950x2200x2300	3940x2500x2400
Weight (kg)	5000	6400	8500	5500	6500	11000	12600

CNC Configuration and Optional Control Systems

The Delem DAC360T CNC system is the featured control configuration for the QC11K-16X3200 model. Its integration with the hydraulic guillotine shear provides CNC-based management of important machine settings and cutting sequences.

Different control configurations may also be available depending on the machine version and project requirements. Optional control systems can be selected according to production needs, automation requirements, and customer preferences.

Why Use a CNC Hydraulic Guillotine Shear?

For industrial sheet metal processing, the combination of hydraulic cutting power and CNC parameter control provides a practical solution for repetitive cutting operations.

The QC11K-16X3200 offers:

• Up to 16 mm maximum cutting thickness

• Up to 3200 mm maximum cutting length

• CNC-controlled backgauge positioning

• Adjustable shear angle and blade clearance

• Rigid welded steel machine frame

• Three-pair guide rail and trolley system

• Ball-supported worktable

• High-quality sheet hold-down clamps

• Protective operator guard

• Delem DAC360T CNC control

• Multiple machine configurations for different cutting capacities

Industrial Sheet Metal Cutting Solution

The QC11K-16X3200 CNC Hydraulic Guillotine Shear is designed for manufacturers requiring a robust machine for large-format sheet metal cutting. Its heavy-duty welded construction, hydraulic shearing system, CNC-controlled functions, and workpiece support features make it suitable for a variety of fabrication and manufacturing environments.

From machinery and automotive components to shipbuilding, aerospace-related fabrication, metal structures, and architectural products, the QC11K series provides multiple capacity configurations to accommodate different sheet thicknesses and cutting lengths.
