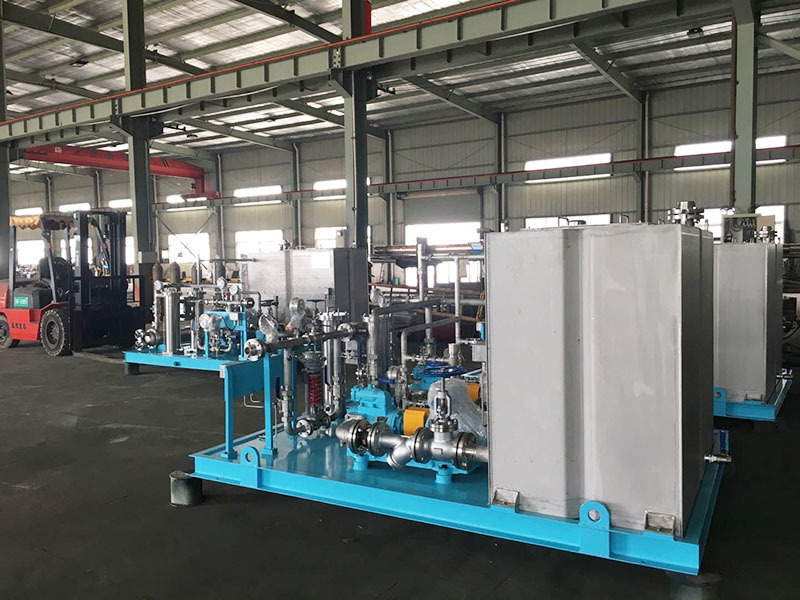

Reducer lubrication hydraulic system

Description

I. Product Overview

The reducer lubrication hydraulic system is an intelligent lubrication solution designed specifically for industrial reducers. Through precise delivery of hydraulic oil/lubricant, it ensures efficient operation of key components such as reducer gears and bearings, reduces wear and temperature rise, and extends equipment life. It is suitable for heavy-load applications such as mining, metallurgy, cement, wind power, and marine applications.

II. Core Functions and Advantages

1. Precise Lubrication Control

· Uses a metering pump or intelligent distributor to deliver lubricant on demand, preventing over- or under-dosing.

· Optional flow sensor monitors lubrication status in real time.

2. Efficient Cooling and Filtration

· Integrated oil cooler (air or water) effectively controls reducer operating temperature.

·Multi-stage filtration system (≤10μm accuracy) to prevent impurities from damaging precision components.

3. Intelligent Monitoring and Alarms

· Equipped with pressure, temperature, and liquid level sensors, supporting PLC or IoT remote monitoring.

· Automatic alarm for abnormal conditions (such as insufficient oil pressure or excessive oil temperature).

4. Energy Saving and Environmental Protection

· Low-energy hydraulic pump design reduces energy waste.

· Sealed oil tank structure prevents leakage and contamination.

5. Modular Design

· Supports customized configurations (such as explosion-proof and high-viscosity oil compatible).

· Compact structure for easy installation and maintenance.

Ⅲ、Technical Parameters

Project	Parameter Range
Working Pressure	0.2~20MPa (adjustable)
Applicable Oils	ISO VG 68~460 industrial gear oil
Flow Range	0.1~50L/min (optional)
Filtration Rating	5~25μm (configured according to needs)
Operating Temperature	-20°C to 80°C (High-temperature model customizable)
Power Supply Voltage	220V 380V AC or 24V DC

IV. Application Scenarios

Heavy Industry: Lubrication of rolling mills, crushers, and conveyor belt reducers.

New Energy: Long-term lubrication and maintenance of wind turbine gearboxes.

Port Machinery: High-pressure lubrication systems for gantry cranes and quay crane reducers.

Automated Production Lines: Precision lubrication of robot joint reducers.

V. Service and Support

Customized Design: Provide exclusive solutions based on reducer model and operating conditions.

After-Sales Guarantee: Global technical service network, rapid response to maintenance needs.
